Rainbow Color Vacuum Coating Machine / Film PVD Vacuum Coating Equipment For Ceramic Tiles

China Rainbow Color Vacuum Coating Machine / Film PVD Vacuum Coating Equipment  For Ceramic Tiles supplier
Rainbow Color Vacuum Coating Machine / Film PVD Vacuum Coating Equipment  For Ceramic Tiles supplier Rainbow Color Vacuum Coating Machine / Film PVD Vacuum Coating Equipment  For Ceramic Tiles supplier

Large Image :  Rainbow Color Vacuum Coating Machine / Film PVD Vacuum Coating Equipment For Ceramic Tiles

Product Details:

Place of Origin: Vacuum Coating Machine
Brand Name: ATOP
Certification: ISO9001
Model Number: ATZK

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: By negotiation
Packaging Details: In film
Delivery Time: 60working days
Supply Ability: 200 sets/year
Contact Now
Detailed Product Description
Control System: Manual Automatic All-in-One Coating Film: Function Film,decorative Film,etc
Operating System: PLC Touching Screen After Sale Service: Engineers Avaliable To Service Machinery Oversea
Limited Vacuum Degree: 8*10-4Pa Customization: Yes

ATOP Ceramic Tiles Rainbow Color Coating PVD Vacuum Coating Machine





Main Feature





1. Rapid deposition rate and small temperature rise can inhibit the phenomenon of fire and target



poisoning.





2. The high energy emitted by sputtering has significantly enhanced the membrane density and adhesion.





3. The touch screen +PLC can achieve full automatic control, automatic/manual switching.





4. Large volume, large loading capacity and high production efficiency.





5. The workpiece frame adopts the public rotation structure, which can set the automatic positive and



backward rotation, and the product is even good.





6. Reasonable configuration, quick pumping rate, low noise, low energy consumption.





7. The film layer deposited by this equipment can meet customer requirements in terms of density,



uniformity, purity and hardness.





Working Principle





Vacuum magnetron sputtering coating machine working principle:the so-called "splash", the electrons in



an electric field under the action of accelerating the process of flying to the substrate with argon atom



collision, ionization out large amounts of argon ions and electrons.The electron flies toward the substrate,



the argon ion speeds up the target material under the action of the electric field, sputtering out a large



number of target atom, and the neutral target atom (or molecule) is deposited on the substrate to form the



film.Secondary electron in accelerating to fly to the substrate by magnetic field in the process of lorentz



magnetic force, the influence of confined area near the target surface plasma, the plasma density in the



area is very high, secondary electron under the action of magnetic field around the target surface is



circular motion, the electron motion path is very long, constantly in the process of movement of the impact



ionization out large amounts of argon ion bombardment of target, after many times of collision of the



electron energy gradually reduce, cast off the yoke of the magnetic field lines, away from the target



material, the final deposition on the substrate.





Equipment Configuration



Vacuum coating machine is the most environmental and friendly surface treatment machine without waste

and harmful gas and liquid.


The specific configuration of coating machine can be designed according to process requirements of

coating products.


Vacuum coating machine make the metal deposition on surface of the product,make the it colorful,

beautiful,function Strong adhesion , good compactness, well repeatability and consistence of color.




Structure type:Vertical type or horizontal type



Chamber type:single door or double doors











Product Name




ATOP Ceramic Tiles Rainbow Color Coating PVD Vacuum Coating Machine




Vacuum Chamber Size

Decide according to the substrate size and output
Substrate
Hardware,glass crafts,ceramic crafts,such us watches,mobile phone metal

shell,sanitary ware,mould,electronic products,crystal glass, glasses, cutlery, knives

and so on



Coating Film

High-grade decorative coating.
Coating Color
Gold, rose gold,coffee,brown,bronze,blue,black,white,gray etc.

Applications
Hardware,glass crafts,ceramic crafts such us watches,mobile phone metal

shell,sanitary ware,mould,electronic products,crystal glass, glasses, cutlery,knives

and so on.


Structure
Vertical type ; horizontal type ; single door type ; double-door type.

Coating Material
Stainless steel, aluminum, titanium, tungsten and other metal films may

be manufactured as coated TIN, TIC, TICN, TIALN, CRN, CU, AU, diamond film

(DLC), decorative film metal, film and non-metallic composite coating film and its

compounds film.


Features
High pumping speed, high efficiency, energy saving, full automatic process

controller can be simple, reliable, beautiful.

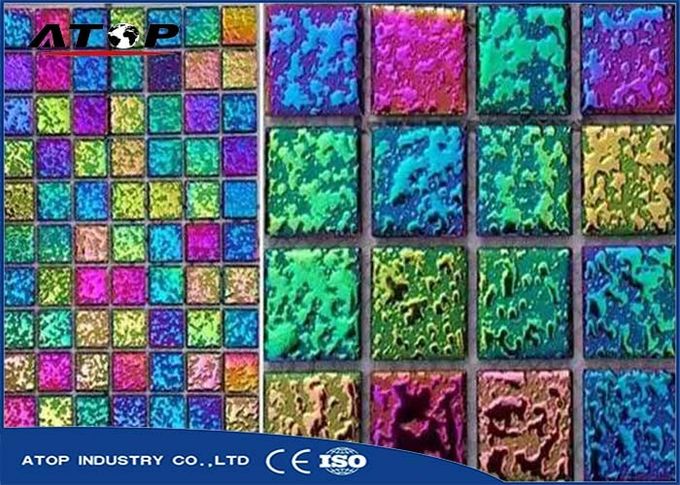

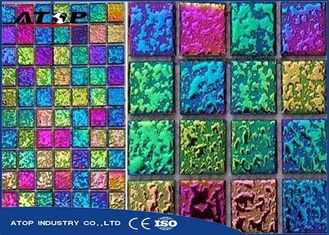

Coating Samples


Rainbow Color Vacuum Coating Machine / Film PVD Vacuum Coating Equipment  For Ceramic Tiles
