Product Details:

Place of Origin: China
Brand Name: ATOP
Certification: ISO9001
Model Number: ATZSF

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: By negotiation
Packaging Details: In film
Delivery Time: 60working days
Payment Terms: L/C, T/T
Supply Ability: 200 sets/year
Contact Now
Detailed Product Description
Business Type: Manufacturer Chamber Material: SUS304
Coating Film: Reflective Film,protection Film,etc Place Of Origin: Jiangsu, China (Mainland)
Substrate: Glass Lens,acrylic,crystal Ornaments,etc. Technology: PVD Lens Coating

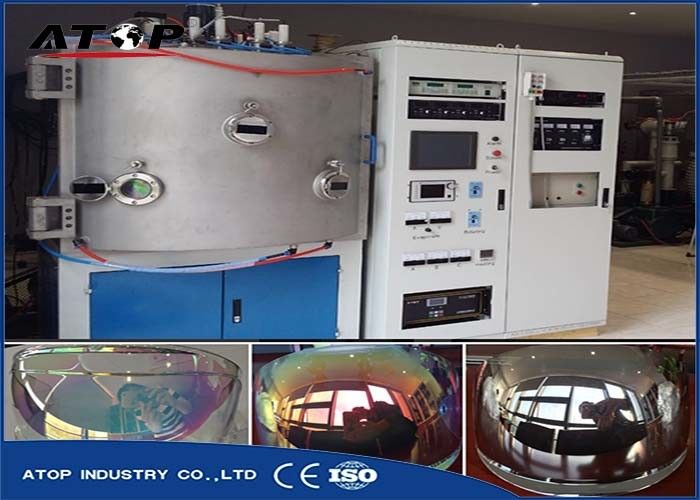

ATOP Electron Gun Evaporation Vacuum Coating Machine For Helmet Visor







Main Feature



1.Equipped with high-power ion source,improve the coating quality and efficiency;




2.Equipped quartz crystal film thickness control device,can realize the film forming rate and automatic



process control;




3.The design of structure can meet the demands of vacuum technology,vacuum system adopt free-oil



system to ensure the whole system work under no oil condition,ensure film clean;




4.The vacuum interlock protection of operating system,vacuum pump with water,power outage alarm



function;




5.Touch screen and PLC control,realize the parametric settings,real-time monitoring and intelligent fault



diagnosis.





Operational principle




Electron beam evaporation is that the membrane is put into the water-cooled copper crucible, heated by



direct use of electron beam, the vaporized atoms or molecules of membrane material is condensed to a



mould by incidence to the surface of the substrate after escaping from the surface evaporation. Electron



beam evaporation has high thermal efficiency, beam density, evaporation speed, high purity of film made



than the resistance heating evaporation.





Application Field





Mainly used for glass lens,acrylic,crystal ornaments,plastic panels,resin material.This equipment can coat



diamond with colorful decoration film,reflective film,coating,uv protection film,reflective film,filter



membrane,beam splitters,dielectric film and so on



Very large scale film and multi-layer film can be realized.The machine can meet the requirement of



reflective glass,binoculars,glass lens,optical lens,light cup,the silver film,AF film products of phone screen.







Product Name



ATOP Electron Gun Evaporation Vacuum Coating Machine For Helmet Visor



Vacuum Chamber Size



Decide according to the substrate size and output
Substrate



Glass



Coating Film



Can coat diamond with colorful decoration film, reflective film, coating, uv



protection film, reflective film, filter membrane, beam splitters, dielectric film and so



on. Very large scale film and multi-layer film can be realized.



Coating Material



The machine can meet the requirement of reflective glass, binoculars, glass lens,



optical lens, light cup, the silver film, AF film products of phone screen





Applications



Glass lens, acrylic, crystal ornaments, plastic panels, resin material.

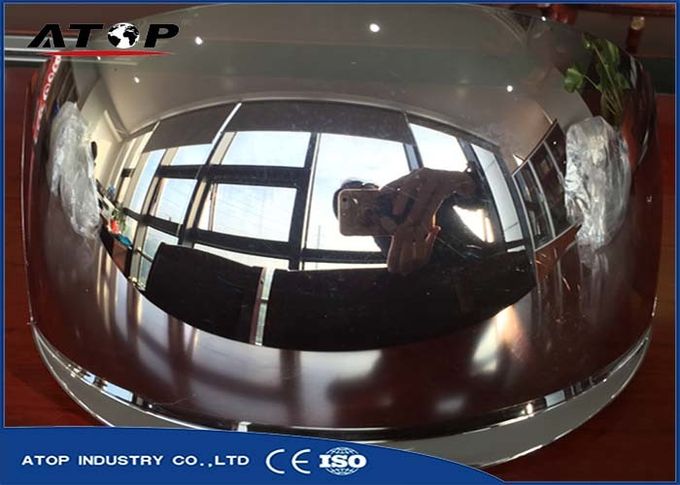

Coating Samples





Electron Gun Anti Glare Vacuum Glass Coating Machine With PLC Touch Screen Control
