Stable Operation Vacuum Thin Film Deposition Equipment For Decoration Film

Certification
Good quality PVD Coating Machine for sales
I'm Online Chat Now

Stable Operation Vacuum Thin Film Deposition Equipment For Decoration Film

China Stable Operation Vacuum Thin Film Deposition Equipment For Decoration Film supplier
Stable Operation Vacuum Thin Film Deposition Equipment For Decoration Film supplier Stable Operation Vacuum Thin Film Deposition Equipment For Decoration Film supplier

Large Image :  Stable Operation Vacuum Thin Film Deposition Equipment For Decoration Film

Product Details:

Place of Origin: China
Brand Name: ATOP
Certification: ISO9001
Model Number: ATZK

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: By negotiation
Packaging Details: In film
Delivery Time: 60working days
Payment Terms: L/C, T/T
Supply Ability: 200 sets/year
Contact Now
Detailed Product Description
Customization: Yes Certification: ISO,CE
Coating Film: Decoration Film, Function Film Coating Color: Gold, Rose Gold, Silver Etc.
Place Of Origin: Jiangsu, China (Mainland) Voltage: 380V

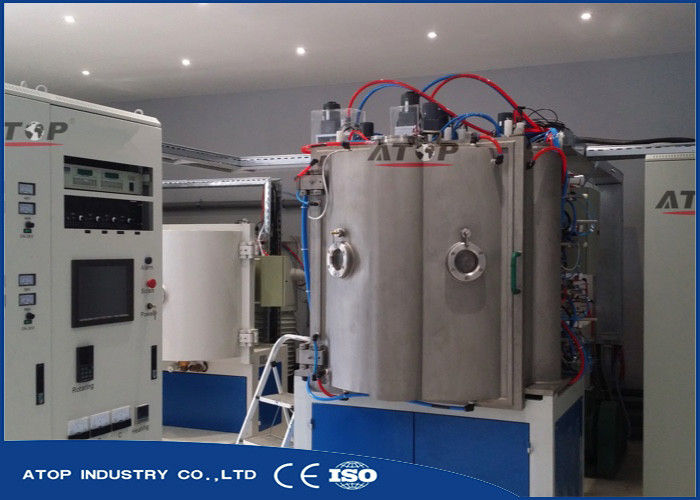

ATOP Magnetron Sputtering Deposition Vacuum Coating System For Metal





Main Feature





1. The high energy emitted by sputtering has significantly enhanced the membrane density and adhesion.





2. The workpiece frame adopts the public rotation structure, which can set the automatic positive and



backward rotation, and the product is even good.





3. Reasonable configuration, quick pumping rate, low noise, low energy consumption.





4. The film layer deposited by this equipment can meet customer requirements in terms of density,



uniformity, purity and hardness.





5. The touch screen +PLC can achieve full automatic control, automatic/manual switching.





6. Large volume, large loading capacity and high production efficiency.







Working Principle




Vacuum magnetron sputtering coating machine working principle:the so-called "splash", the electrons in



an electric field under the action of accelerating the process of flying to the substrate with argon atom



collision, ionization out large amounts of argon ions and electrons.The electron flies toward the substrate,



the argon ion speeds up the target material under the action of the electric field, sputtering out a large



number of target atom, and the neutral target atom (or molecule) is deposited on the substrate to form the



film.Secondary electron in accelerating to fly to the substrate by magnetic field in the process of lorentz



magnetic force, the influence of confined area near the target surface plasma, the plasma density in the



area is very high, secondary electron under the action of magnetic field around the target surface is



circular motion, the electron motion path is very long, constantly in the process of movement of the impact



ionization out large amounts of argon ion bombardment of target, after many times of collision of the



electron energy gradually reduce, cast off the yoke of the magnetic field lines, away from the target



material, the final deposition on the substrate.










Product Name


ATOP Magnetron Sputtering Deposition Vacuum Coating System For Metal


Vacuum Chamber Size


Decide according to the substrate size and output

Substrate


Hardware,glass crafts,ceramic crafts,such us watches,mobile phone metal

shell,sanitary ware,mould,electronic products,crystal glass, glasses, cutlery,

knives and so on



Coating Film


High-grade decorative coating.

Coating Color


Gold,rose gold,coffee,brown,bronze,blue,black,white,gray etc.




Applications


Hardware,glass crafts,ceramic crafts .


Structure


Vertical type ; horizontal type ; single door type ; double-door type.


Coating Material


Stainless steel, aluminum, titanium, tungsten and other metal films may


be manufactured as coated TIN, TIC, TICN, TIALN, CRN, CU, AU, diamond film

(DLC), decorative film metal, film and non-metallic composite coating film and its

compounds film.


Features


High pumping speed, high efficiency, energy saving, full automatic process

controller can be simple, reliable, beautiful.

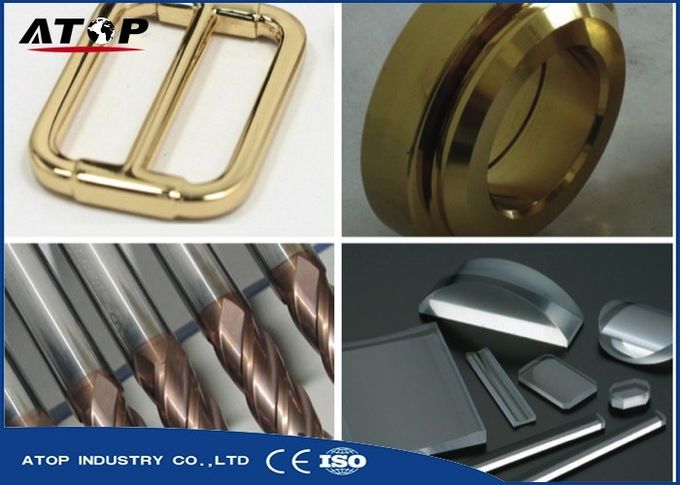

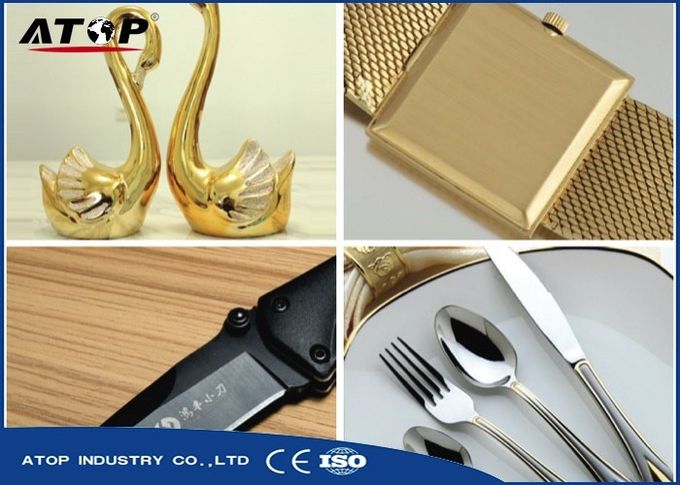

Coating Samples


Stable Operation Vacuum Thin Film Deposition Equipment For Decoration FilmStable Operation Vacuum Thin Film Deposition Equipment For Decoration Film
