Fill - And - Draw Operation Web Coating Machine Energy Saving For Aluminium Wire

China Fill - And - Draw Operation Web Coating Machine Energy Saving For Aluminium Wire supplier
Fill - And - Draw Operation Web Coating Machine Energy Saving For Aluminium Wire supplier Fill - And - Draw Operation Web Coating Machine Energy Saving For Aluminium Wire supplier

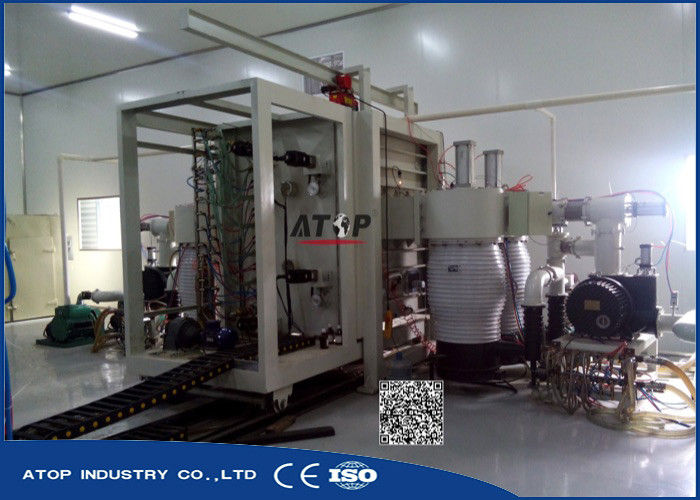

Large Image :  Fill - And - Draw Operation Web Coating Machine Energy Saving For Aluminium Wire

Product Details:

Place of Origin: China
Brand Name: ATOP
Certification: ISO9001
Model Number: ATJR

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: By negotiation
Packaging Details: In film
Delivery Time: 60working days
Payment Terms: L/C, T/T
Supply Ability: 200 sets/year
Contact Now
Detailed Product Description
Chamber Material: SUS304 Certification: ISO,CE
Business Type: Manufacturer Operating System: PLC Touching Screen
After Sale Service: Engineers Avaliable To Service Machinery Oversea Technology: Vacuum Web Coating

ATOP Evaporation Magnetron Sputtering Vacuum Web

Coating Machine For Aluminium Wire






Application Field



Evaporation, magnetron series rolling vacuum coating machine are mainly used to do the metal film on the

surface on the plastic, cloth, paper, tinsel. These products will be widely used on package, printing, anti-

counterfeiting, textile, electronic industry and so on.



Product Name


ATOP Evaporation Magnetron Sputtering Vacuum Web Coating Machine For

Aluminium Wire



Vacuum Chamber Size

Decide according to the substrate size and output

Substrate

Plastic film, paper sheet, Cloth etc.

Coating Film

Decorative film,metal film,etc

Coating Colors

Gold, rose gold,coffee,brown,bronze,blue,rainbow etc.
Applications


Package, printing, anti-counterfeiting, Textile, electronic industry and so on.



Structure

Vertical type ; horizontal type ; single door type ; double-door type.
Features


The rolling system adopts high precision servo frequency conversation to control the

speed. stable operation, high coating speed, when it release and loading the

products. It will be very neat, no scratch, no drape to material.


Configuration

High pumping speed, high efficiency, energy saving, full automatic process controller

can be simple, reliable, beautiful.

Weight

3Tons-8Tons accordingly





Configuration



Machine includes the design as following:


1)Fill-and-draw operation:Roll to Roll in the vacuum chamber

2)Double vacuum systems:Divided into Rolling chamber and Vapor chamber and each have separate

vacuum pumps unit.

3)Cooling roller:The film would be cooled by the roller after metalizing rapidly.

4)Hot evaporation system:Thermal heating evaporation boats, and supply aluminum continuously.

5)Digital control of film driving system:Includes 3 groups of Servo motor


1)2 pieces of nip rolls( angle and bending are adjustable )

2)Process control system (PLC) and auto start process.

3)Touch screen operation system.

4)Filming roll which -15℃cooling and heat system to avoid the heat damage on the film.

5)Cold trap and loop cooling system.




Main Feature

1. Each wire-feeding unit controlled by computer motor separately. The speed can be adjusted together

or separately with speed display.


2. Equipped with high standard vacuum pump system, with large vacuum pump speed, by PLC control.



3. The rolling system adopts high precision servo frequency conversation to control the speed. stable

operation, high coating speed, when it release and loading the products. It will be very neat, no scratch,

no drape to material.


4. The tension system uses the digital control, high tension, constant Linear velocity, the moving speed

faster.


5. Equipped with big capacity power source, high coating efficiency, good coating uniformity.


6. Stable operation, neatly release and loading, good coating uniformity, short production cycle, low

energy consumption, easy operation and maintenance, stable performance and other more advantages.

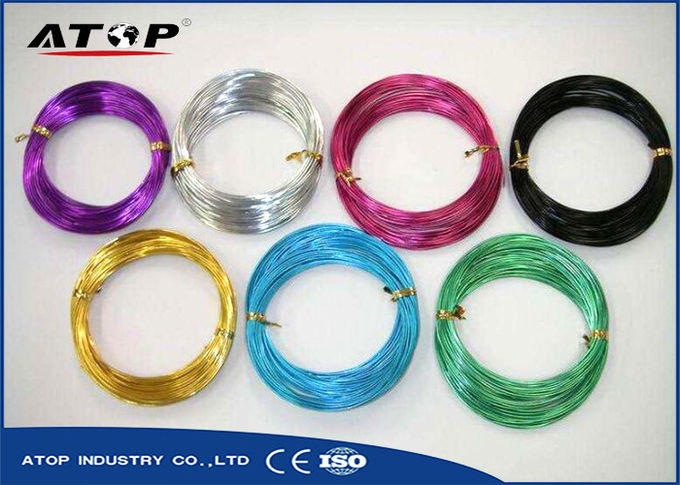

Coating Samples


Fill - And - Draw Operation Web Coating Machine Energy Saving For Aluminium Wire
