High Output Web Coating Equipment / Roll To Roll Coater With Double Vacuum Systems

China High Output Web Coating Equipment / Roll To Roll Coater With Double Vacuum Systems supplier
High Output Web Coating Equipment / Roll To Roll Coater With Double Vacuum Systems supplier High Output Web Coating Equipment / Roll To Roll Coater With Double Vacuum Systems supplier

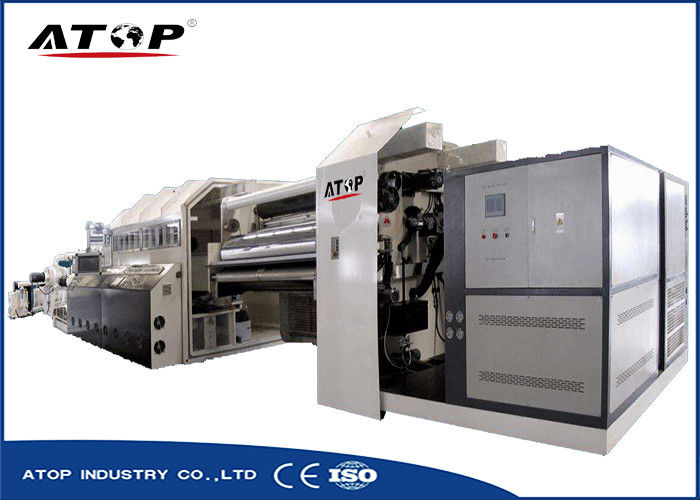

Large Image :  High Output Web Coating Equipment / Roll To Roll Coater With Double Vacuum Systems

Product Details:

Place of Origin: China
Brand Name: ATOP
Certification: ISO9001
Model Number: ATJR

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: By negotiation
Packaging Details: In film
Delivery Time: 60working days
Payment Terms: L/C, T/T
Supply Ability: 200 sets/year
Contact Now
Detailed Product Description
Coating Colors: Gold, Rose Gold, Silver , Rainbow, Multi Color Etc. Chamber Material: SUS304
Place Of Origin: Jiangsu, China (Mainland) Certification: ISO,CE
After Sale Service: Engineers Avaliable To Service Machinery Oversea Limited Vacuum Degree: 8*10-4Pa

ATOP Vacuum Horizontal Roller To Roller PVD Web Coating Machine






Product Category



Electronic beam heating evaporation vacuum rolling coating machine are mainly used for high-melting

material coating purpose, for example : Si02 material.

Magnetron sputtering vacuum rolling coating machine deposition rate is low, however, it have a wide

range application and high adhesion force advantages.



Configuration


Machine includes the design as following:


1)Fill-and-draw operation:Roll to Roll in the vacuum chamber

2)Double vacuum systems:Divided into Rolling chamber and Vapor chamber and each have separate

vacuum pumps unit.

3)Cooling roller:The film would be cooled by the roller after metalizing rapidly.

4)Hot evaporation system:Thermal heating evaporation boats, and supply aluminum continuously.

5)Digital control of film driving system:Includes 3 groups of Servo motor





Application Field



Evaporation, magnetron series rolling vacuum coating machine are mainly used to do the metal film on the

surface on the plastic, cloth, paper, tinsel. These products will be widely used on package, printing, anti-

counterfeiting, textile, electronic industry and so on.




Product Name


ATOP Vacuum Horizontal Roller To Roller PVD Web Coating Machine



Vacuum Chamber Size

Decide according to the substrate size and output

Substrate

Plastic film, paper sheet, Cloth etc.

Coating Film

Decorative film,metal film,etc

Coating Colors

Gold, rose gold,coffee,brown,bronze,blue,rainbow etc.
Applications


Package, printing, anti-counterfeiting, Textile, electronic industry and so on.



Structure

Vertical type ; horizontal type ; single door type ; double-door type.
Features


The rolling system adopts high precision servo frequency conversation to control the

speed. stable operation, high coating speed, when it release and loading the

products. It will be very neat, no scratch, no drape to material.


Configuration

High pumping speed, high efficiency, energy saving, full automatic process controller

can be simple, reliable, beautiful.

Weight

3Tons-8Tons accordingly







Main Feature



1. The rolling system adopts high precision servo frequency conversation to control the speed. stable

operation, high coating speed, when it release and loading the products. It will be very neat, no scratch,

no drape to material.


2. The tension system uses the digital control, high tension, constant Linear velocity, the moving speed

faster.


3. Each wire-feeding unit controlled by computer motor separately. The speed can be adjusted together

or separately with speed display.


4. Equipped with high standard vacuum pump system, with large vacuum pump speed, by PLC control.







Coating Samples


High Output Web Coating Equipment / Roll To Roll Coater With Double Vacuum Systems
