UV Protection Film Lens Hard Coating Machine With Film Thickness Control System

China UV Protection Film Lens Hard Coating Machine With Film Thickness Control System supplier
UV Protection Film Lens Hard Coating Machine With Film Thickness Control System supplier UV Protection Film Lens Hard Coating Machine With Film Thickness Control System supplier

Large Image :  UV Protection Film Lens Hard Coating Machine With Film Thickness Control System

Product Details:

Place of Origin: China
Brand Name: ATOP
Certification: ISO9001
Model Number: ATSF

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: By negotiation
Packaging Details: In film
Delivery Time: 60working days
Payment Terms: L/C, T/T
Supply Ability: 200 sets/year
Contact Now
Detailed Product Description
Customization: Yes Operating System: PLC Touching Screen
Business Type: Manufacturer Coating Color: Gold, Rose Gold, Silver,rainbow Etc.
Technology: PVD Lens Coating Substrate: Glass Lens,acrylic,crystal Ornaments,etc.





ATOP UV Protection Film Evaporation Optical PVD Vacuum Coating Machine











Basic Configuration


1. Heating and baking system: adopt a stainless steel tube heating body, the substrate temperature can

reach 350 degrees, the temperature control meter adopts the Japanese conductive instrument, the

temperature control precision is plus or minus 1 degree Celsius.


2. Film thickness control: quartz crystal film thickness monitoring system, which can control the

evaporation rate of the electron gun, accurately control the film thickness, and automatically switch easily

and automatically.


3. The coating room: vertical single door, or horizontal structure selection, full stainless steel material,

vacuum chamber of the effective diameter 800 mm to 2000 mm, double walled water cooling structure,

with plug-in in antifouling stainless steel plate, easy to clean and operation, etc.


4. Workpiece frame: generic integral or umbrella structure, or customized according to customer

requirements, adjustable with frequency converter, adjustable speed.


5. The vacuum system: mechanical pump, rotary vane pump, roots pump, molecular pump, cryogenic

pump, with cold trap of high vacuum oil diffusion pump large pumping speed extraction system, the

backing pump optional oil-free vacuum pump, stainless steel pipes and valves.


6. The coating system: the 1 set - six sets of high-power magnetic deflection 270 ° e electron gun and

multiple point crucible, assisted deposition system configuration hall ion source and resistance of

evaporation source.


7. Inflating system: automatic gas flowmeter and flow display instrument control.


8. Control system: color touch screen, PLC, automatic and manual control can be converted at any

time.Real-time display detailed parameters, fully automatic control of the entire production process,

automatic storage process parameters.The main electrical components are famous brands such as

schneider.


9. Safety system: setting up the acoustic optical alarm device of water, electricity and gas anomaly, and

implementing the corresponding protection procedure.





Main Feature





Product Name



ATOP UV Protection Film Evaporation Optical PVD Vacuum Coating Machine



Vacuum Chamber Size


Decide according to the substrate size and output
Substrate


Glass,plastic,etc


Coating Film


Can coat diamond with colorful decoration film, reflective film, coating, uv

protection film, reflective film, filter membrane, beam splitters, dielectric film and so

on. Very large scale film and multi-layer film can be realized.


Coating Material


The machine can meet the requirement of reflective glass, binoculars, glass lens,

optical lens, light cup, the silver film, AF film products of phone screen



Applications


Glass lens, acrylic, crystal ornaments, plastic panels, resin material.



1.The traditional vertical or efficient horizontal,equipped with large crucible gun,the film surface is smooth

and uniformity;

2.Equipped with high-power ion source,improve the coating quality and efficiency;

3.Equipped quartz crystal film thickness control device,can realize the film forming rate and automatic

process control;

4.The design of structure can meet the demands of vacuum technology,vacuum system adopt free-oil

system to ensure the whole system work under no oil condition,ensure film clean;

5.The vacuum interlock protection of operating system,vacuum pump with water,power outage alarm

function;

6.Touch screen and PLC control,realize the parametric settings,real-time monitoring and intelligent fault

diagnosis.




Operational principle



Electron beam evaporation is that the membrane is put into the water-cooled copper crucible, heated by

direct use of electron beam, the vaporized atoms or molecules of membrane material is condensed to a

mould by incidence to the surface of the substrate after escaping from the surface evaporation. Electron

beam evaporation has high thermal efficiency, beam density, evaporation speed, high purity of film made

than the resistance heating evaporation.

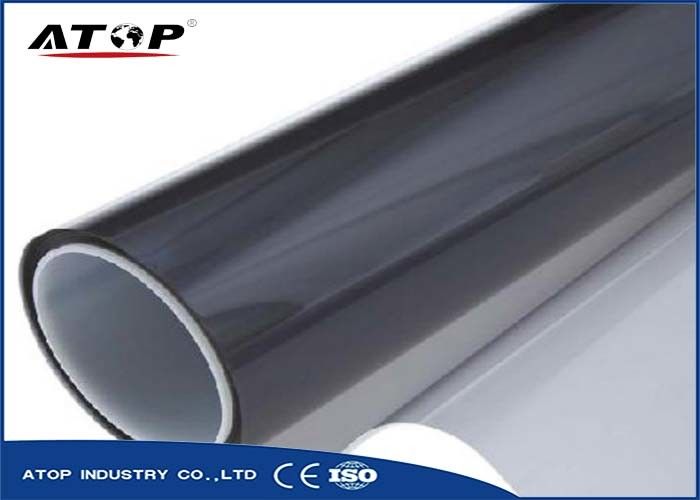

Coating Samples



UV Protection Film Lens Hard Coating Machine With Film Thickness Control System
