Helmet Visors Lens Coating Machine , PC Plastic Vacuum Coating Equipment

China Helmet Visors Lens Coating Machine , PC Plastic Vacuum Coating Equipment supplier
Helmet Visors Lens Coating Machine , PC Plastic Vacuum Coating Equipment supplier Helmet Visors Lens Coating Machine , PC Plastic Vacuum Coating Equipment supplier

Large Image :  Helmet Visors Lens Coating Machine , PC Plastic Vacuum Coating Equipment

Product Details:

Place of Origin: China
Brand Name: ATOP
Certification: ISO9001
Model Number: ATSF

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: By negotiation
Packaging Details: In film
Delivery Time: 60working days
Payment Terms: L/C, T/T
Supply Ability: 200 sets/year
Contact Now
Detailed Product Description
Coating Film: Reflective Film,protection Film,etc Certification: ISO,CE
Control System: Manual Automatic All-in-One Coating Color: Gold, Rose Gold, Silver,rainbow Etc.
After Sale Service: Engineers Avaliable To Service Machinery Oversea Operating System: PLC Touching Screen





ATOP Helmet Visors Vacuum Coating Equipment / Vacuum Plating Metalized PC Plastic








Operational principle



Electron beam evaporation is that the membrane is put into the water-cooled copper crucible, heated by

direct use of electron beam, the vaporized atoms or molecules of membrane material is condensed to a

mould by incidence to the surface of the substrate after escaping from the surface evaporation. Electron

beam evaporation has high thermal efficiency, beam density, evaporation speed, high purity of film made

than the resistance heating evaporation.




Application Field



Mainly used for glass lens,acrylic,crystal ornaments,plastic panels,resin material.This equipment can coat

diamond with colorful decoration film,reflective film,coating,uv protection film,reflective film,filter

membrane,beam splitters,dielectric film and so on

Very large scale film and multi-layer film can be realized.The machine can meet the requirement of

reflective glass,binoculars,glass lens,optical lens,light cup,the silver film,AF film products of phone screen.



Main Feature





 1.The traditional vertical or efficient horizontal,equipped with large crucible gun,the film surface is smooth

and uniformity;



2.Equipped with high-power ion source,improve the coating quality and efficiency;



3.Equipped quartz crystal film thickness control device,can realize the film forming rate and automatic

process control;



4.The design of structure can meet the demands of vacuum technology,vacuum system adopt free-oil

system to ensure the whole system work under no oil condition,ensure film clean;



5.The vacuum interlock protection of operating system,vacuum pump with water,power outage alarm

function;




Basic Configuration




1. Vacuum Chamber room: vertical single door, or horizontal type, full stainless steel material, vacuum



chamber of the effective diameter 800 mm to 2000 mm, double walled water cooling structure, with plug-in



in antifouling stainless steel plate, easy to clean and operation, etc.





2. Workpiece frame: generic integral or umbrella structure, or customized according to customer



requirements, adjustable with frequency converter, adjustable speed.





3. The vacuum system: mechanical pump, rotary vane pump, roots pump, molecular pump, cryogenic



pump, with cold trap of high vacuum oil diffusion pump large pumping speed extraction system, the



backing pump optional oil-free vacuum pump, stainless steel pipes and valves.





4. The coating system: the 1 set - six sets of high-power magnetic deflection 270° electron gun and



multiple point crucible, assisted deposition system configuration hall ion source and resistance of



evaporation source.





5. Inflating system: automatic gas flowmeter and flow display instrument control.





6. Control system: color touch screen, PLC, automatic and manual control can be converted at any



time.Real-time display detailed parameters, fully automatic control of the entire production process,



automatic storage process parameters.The main electrical components are famous brands such as



schneider.





7. Safety system: setting up the acoustic optical alarm device of water, electricity and gas anomaly, and



implementing the corresponding protection procedure.





8. Heating and baking system: adopt a stainless steel tube heating body, the substrate temperature can



reach 350 degrees, the temperature control meter adopts the Japanese conductive instrument, the



temperature control precision is plus or minus 1 degree Celsius.





9. Film thickness control: quartz crystal film thickness monitoring system, which can control the



evaporation rate of the electron gun, accurately control the film thickness, and automatically switch easily



and automatically.





10. Electron gun and the evaporation source: electron gun power source adopts the power frequency



voltage rise, digital control circuits, sparking with high-pressure automatic protection, restoration and



steady beam function, remote control, can commune with quartz crystal thickness meter, coating process



automatic control.






Product Name



ATOP Helmet Visors Vacuum Coating Equipment / Vacuum Plating Metalized PC

Plastic



Vacuum Chamber Size


Decide according to the substrate size and output
Substrate


Glass,plastic,etc


Coating Film


Can coat diamond with colorful decoration film, reflective film, coating, uv

protection film, reflective film, filter membrane, beam splitters, dielectric film and so

on. Very large scale film and multi-layer film can be realized.


Coating Material


The machine can meet the requirement of reflective glass, binoculars, glass lens,

optical lens, light cup, the silver film, AF film products of phone screen



Applications


Glass lens, acrylic, crystal ornaments, plastic panels, resin material.

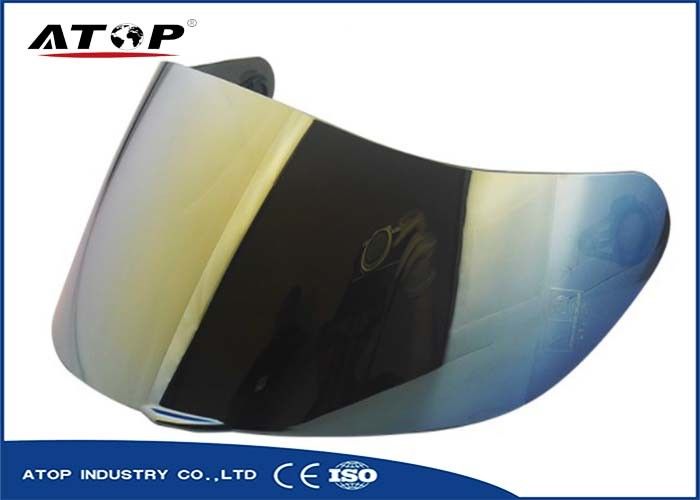

Coating Samples



Helmet Visors Lens Coating Machine , PC Plastic Vacuum Coating Equipment
