Aluminium Alloy Wheel Hub PVD Coating Machine With PLC Touch Screen Control System

China Aluminium Alloy Wheel Hub PVD Coating Machine With PLC Touch Screen Control System supplier
Aluminium Alloy Wheel Hub PVD Coating Machine With PLC Touch Screen Control System supplier Aluminium Alloy Wheel Hub PVD Coating Machine With PLC Touch Screen Control System supplier

Large Image :  Aluminium Alloy Wheel Hub PVD Coating Machine With PLC Touch Screen Control System

Product Details:

Place of Origin: China
Brand Name: ATOP
Certification: ISO9001
Model Number: ATZK

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: By negotiation
Packaging Details: In film
Delivery Time: 60working days
Supply Ability: 200 sets/year
Contact Now
Detailed Product Description
Customization: Yes Certification: ISO,CE
Coating Color: Gold,rose Gold,brown,bronze,blue,black,etc Chamber Material: SUS304
Limited Vacuum Degree: 8*10-4Pa Place Of Origin: Jiangsu, China (Mainland)

ATOP Wheels Vacuum Coating Machine/Aluminium Alloy Wheel Hub

PVD Coating Machine




Working Principle





Magnetron sputtering working principle of vacuum coating machine, the so-called "splash", under the



action of the electrons in an electric field accelerates to the substrate in the process of collision with argon



atoms, ionization out large amounts of argon ions and electrons.The electron flies toward the substrate,



the argon ion speeds up the target material under the action of the electric field, sputtering out a large



number of target atom, and the neutral target atom (or molecule) is deposited on the substrate to form the



film.Secondary electron in accelerating to fly to the substrate by magnetic field in the process of lorentz



magnetic force, the influence of confined area near the target surface plasma, the plasma density in the



area is very high, secondary electron under the action of magnetic field around the target surface is



circular motion, the electron motion path is very long, constantly in the process of movement of the impact



ionization out large amounts of argon ion bombardment of target, after many times of collision of the



electron energy gradually reduce, cast off the yoke of the magnetic field lines, away from the target



material, the final deposition on the substrate.






Application Field



It applies to hardware,glass crafts,ceramic crafts,such us watches,mobile phone metal shell,sanitary


ware,mould,electronic products,crystal glass, glasses, cutlery, knives and so on.


You can make super-hard wear-resistant film coating, anti-corrosion film, decorative film(gold color,rose


gold,coffee,brown,bronze,blue,black,white,gray and other colors),it combined with magnetron sputtering


technique can be plated the multilayer composite membrane and manufactured plated stainless steel,


aluminum, titanium, tungsten and other metal films may be manufactured as coated TIN, TIC, TICN, TIALN,


CRN, CU, AU, diamond film (DLC), decorative film metal, film and non-metallic composite coating film and


its compounds film.



Basic configuration




1.The coating chamber, valves and piping are made of stainless steel vacuum chamber effective diameter



from Φ500 mm to Φ2000 mm.





2. The vacuum system consists of mechanical pump, rotary vane pump, rotz pump and a cold well high



vacuum oil diffusion pump or molecular pump.





3. The coating system adopts multiple flat target or cylindrical target, with multiple dc power or medium



frequency power supply.





4. The auxiliary pumping system adopts a low-temperature water vapor trap.





5. The gas flow meter and flow control (display) control of the pneumatic system are adopted.





6. The electric control system shall set up circuit overload, water breaking and sound alarm device of the



broken air.





7. Control system (touch screen + PLC), display detailed parameters in real time, fully automatic control of



the entire production process, and automatic storage of process parameters.





8. The equipment is equipped with high power bias system and the ionizing source auxiliary deposition



coating.




Product Name



ATOP Wheels Vacuum Coating Machine/Aluminium Alloy Wheel Hub PVD Coating

Machine



Vacuum Chamber Size

Decide according to the substrate size and output
Substrate


Hardware,glass crafts,ceramic crafts,such us watches,mobile phone metal


shell,sanitary ware,mould,electronic products,crystal glass, glasses, cutlery, knives


and so on



Coating Film

High-grade decorative coating.
Coating Color
Gold, rose gold,coffee,brown,bronze,blue,black,white,gray etc.

Applications


Hardware,glass crafts,ceramic crafts such us watches,mobile phone metal


shell,sanitary ware,mould,electronic products,crystal glass, glasses, cutlery,knives


and so on.


Structure
Vertical type ; horizontal type ; single door type ; double-door type.

Coating Material


Stainless steel, aluminum, titanium, tungsten and other metal films may


be manufactured as coated TIN, TIC, TICN, TIALN, CRN, CU, AU, diamond film


(DLC), decorative film metal, film and non-metallic composite coating film and its


compounds film.


Features


High pumping speed, high efficiency, energy saving, full automatic process


controller can be simple, reliable, beautiful.

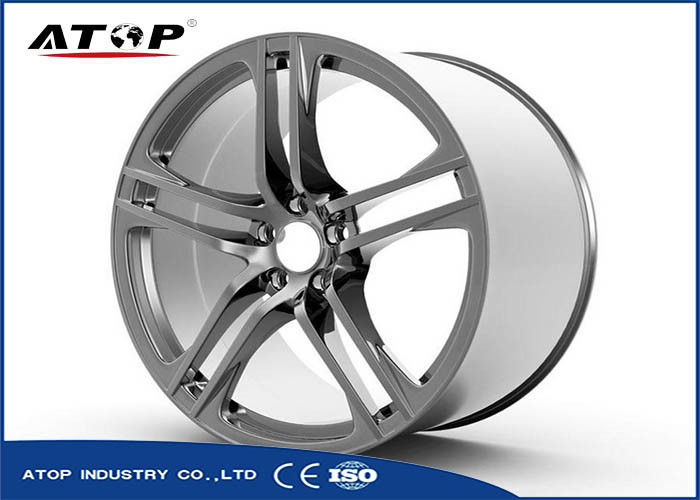

Coating Samples


Aluminium Alloy Wheel Hub PVD Coating Machine With PLC Touch Screen Control System
