High Speed Hardware Titanium Nitride Coating Equipment For Wear - Resistant Film

China High Speed Hardware Titanium Nitride Coating Equipment For Wear - Resistant Film supplier
High Speed Hardware Titanium Nitride Coating Equipment For Wear - Resistant Film supplier High Speed Hardware Titanium Nitride Coating Equipment For Wear - Resistant Film supplier

Large Image :  High Speed Hardware Titanium Nitride Coating Equipment For Wear - Resistant Film

Product Details:

Place of Origin: China
Brand Name: ATOP
Certification: ISO9001
Model Number: ATZK

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: By negotiation
Packaging Details: In film
Delivery Time: 60working days
Payment Terms: L/C, T/T
Supply Ability: 200 sets/year
Contact Now
Detailed Product Description
Chamber Material: SUS304 After Sale Service: Engineers Avaliable To Service Machinery Oversea
Control System: Manual Automatic All-in-One Coating Color: Gold,rose Gold,coffee,brown,bronze,blue,black,white,gray Etc.
Coating Film: Super-hard Wear-resistant Film,decorative Film,etc Substrate: Hardware,glass Crafts,ceramic Crafts

ATOP Titanium Nitride Magnetron Sputtering PVD Vacuum Coating Machine





Main Feature


1. Magnetron sputtering principle is based on the theory of the cathode glow discharge, it expend the

cathode surface magnetic field near the work piece surface. Then it improves the sputtered atom

ionization rate. It keeps the magnetron sputtering uniformity, also can improve the surface shining effect.


2. The arc plasma evaporation source is reliable, it can work under 40A current in optimizing the cathode

and the magnetic field structure,. It will happen atomic diffusion between the coating and the material. It

also has the advantages that lon Beam Assisted Deposition.


3. Vacuum pumping system, electric control system and complete vacuum coating system can be

customized according to user requirements.




4. It equipments cryogenic ion secondary source, some substrate without heating the material, It can

directly do the cold plating film at room temperature, save energy, increase productivity.


5. The maximum of the temperature for tool coating chamber can 600 degrees, In addition to the tool

Coater coating applications require heating device, other applications do not need the device.



Working principle



Magnetron sputtering working principle of vacuum coating machine, the so-called "splash", under the



action of the electrons in an electric field accelerates to the substrate in the process of collision with argon



atoms, ionization out large amounts of argon ions and electrons.The electron flies toward the substrate,



the argon ion speeds up the target material under the action of the electric field, sputtering out a large



number of target atom, and the neutral target atom (or molecule) is deposited on the substrate to form the



film.Secondary electron in accelerating to fly to the substrate by magnetic field in the process of lorentz



magnetic force, the influence of confined area near the target surface plasma, the plasma density in the



area is very high, secondary electron under the action of magnetic field around the target surface is



circular motion, the electron motion path is very long, constantly in the process of movement of the impact



ionization out large amounts of argon ion bombardment of target, after many times of collision of the



electron energy gradually reduce, cast off the yoke of the magnetic field lines, away from the target



material, the final deposition on the substrate.







Product Name



ATOP Titanium Nitride Magnetron Sputtering PVD Vacuum Coating Machine



Vacuum Chamber Size


Decide according to the substrate size and output

Substrate


Hardware,glass crafts,ceramic crafts,such us watches,mobile phone metal

shell,sanitary ware,mould,electronic products,crystal glass, glasses, cutlery,

knives and so on



Coating Film


High-grade decorative coating.

Coating Color


Gold,rose gold,coffee,brown,bronze,blue,black,white,gray etc.




Applications


Hardware,glass crafts,ceramic crafts .


Structure


Vertical type ; horizontal type ; single door type ; double-door type.


Coating Material


Stainless steel, aluminum, titanium, tungsten and other metal films may


be manufactured as coated TIN, TIC, TICN, TIALN, CRN, CU, AU, diamond film

(DLC), decorative film metal, film and non-metallic composite coating film and its

compounds film.


Features


High pumping speed, high efficiency, energy saving, full automatic process

controller can be simple, reliable, beautiful.

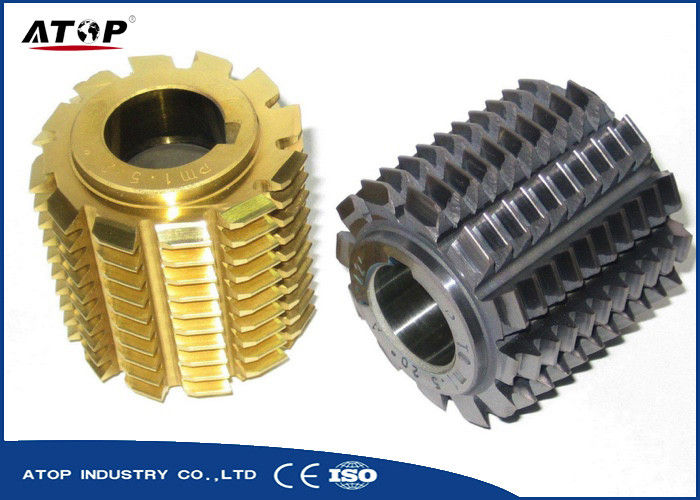

Coating Samples


High Speed Hardware Titanium Nitride Coating Equipment For Wear - Resistant Film
