Cosmetic Bottle Cap Decorative Evaporation Vacuum Coating machine/Equipment With ISO9001

China Cosmetic Bottle Cap Decorative Evaporation Vacuum Coating machine/Equipment With ISO9001 supplier
Cosmetic Bottle Cap Decorative Evaporation Vacuum Coating machine/Equipment With ISO9001 supplier Cosmetic Bottle Cap Decorative Evaporation Vacuum Coating machine/Equipment With ISO9001 supplier Cosmetic Bottle Cap Decorative Evaporation Vacuum Coating machine/Equipment With ISO9001 supplier

Large Image :  Cosmetic Bottle Cap Decorative Evaporation Vacuum Coating machine/Equipment With ISO9001

Product Details:

Place of Origin: China
Brand Name: ATOP
Certification: ISO9001
Model Number: ATZF

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: By negotiation
Packaging Details: In film
Delivery Time: 60working days
Payment Terms: L/C, T/T
Supply Ability: 200 sets/year
Contact Now
Detailed Product Description
Control System: Manual Automatic All-in-One After-sales Service Provided: Engineers Available To Service Machinery Overseas
Chamber Material: SUS304 Coating Film: Decoration Film, Function Film
Limited Vacuum Degree: 8*10-4Pa Product Name: Vacuum Coating Machine

ATOP Cosmetic Bottle Cap Decorative Coating Evaporation Vacuum Coating Machine





Working Principle



Resistance evaporation vacuum coating machine working principle is that when the evaporation materials



such as aluminum wire in high resistance materials, heat generated by electric current, the membrane



material under high temperature, instant vaporization migrated to base material surface, evaporation



deposition film.





Main Feature


1. Variety of structure : vertical type ; horizontal type ; single door type ; double-door type.


2. Equipped with 1-2 sets new model evaporation electrode, easy installation and discharge, convenient

maintenance. Work rack flexible and reliable by public rotation of gear transmission structure.


3. Reasonable configuration for the vacuum system. High pumping speed, high efficiency, energy saving,

full automatic process controller can be simple, reliable, beautiful.





Basic Configuration



1.The selection of a variety of structures, such as: vertical, horizontal, single, two-door, SUS304 or carbon



steel manufacturing, vacuum chamber effective diameter from Φ 600 mm to Φ 2200 mm.





2.The vacuum system consists of mechanical pump, rotary vane pump, roots pump and a cold well high



vacuum oil diffusion pump, or energy saving, pollution-free, noiseless, high efficiency molecular pump



composition.





3.The coating system adopts 1--2 sets of new structure copper electrode resistance evaporation system



and power supply.





4.A low temperature water vapor trap can be used for the auxiliary pumping system.





5. The electric control system shall set up circuit overload, water breaking, and acoustic alarm device.





6. Control system (touch screen + PLC), display detailed parameters in real time, fully automatic control of



the entire production process, and automatic storage of process parameters.







Product Name


Cosmetic Bottle Cap Decorative Coating Evaporation Vacuum Coating Machine


Vacuum Chamber Size



Decide according to the substrate size and output

Substrate


Plastic,ceramic,glass,resin,candle and metal material.




Coating Film



High-grade decorative coating and function coating

Coating Color


Gold, rose gold,coffee,brown,bronze,blue,black,white,gray etc.



Applications


Crafts, gifts, hardware appliances, accessories and electronics, machinery, light

industry and other industries.



Structure


Vertical type ; horizontal type ; single door type ; double-door type.



Coating Material


Stainless steel, aluminum, titanium, tungsten and other metal films may


be manufactured as coated TIN, TIC, TICN, TIALN, CRN, CU, AU, diamond film

(DLC), decorative film metal, film and non-metallic composite coating film and its

compounds film.


Features


High pumping speed, high efficiency, energy saving, full automatic process

controller can be simple, reliable, beautiful.

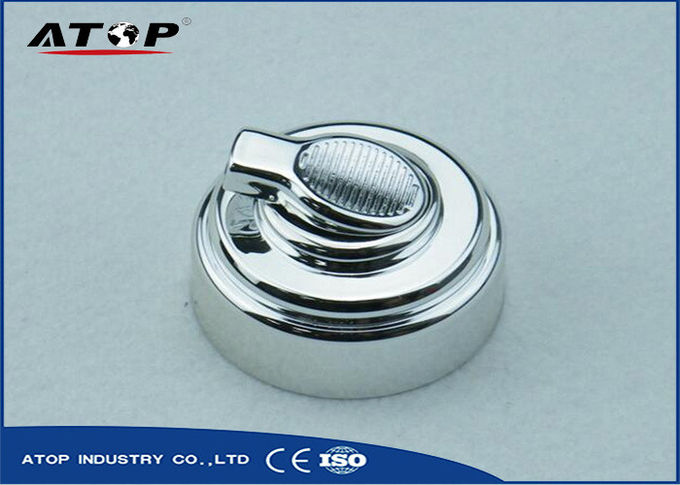

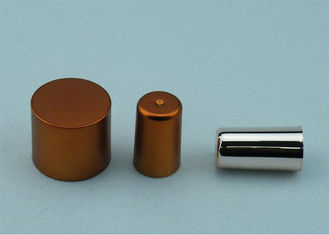

Coating Samples





Cosmetic Bottle Cap Decorative Evaporation Vacuum Coating machine/Equipment With ISO9001
