Physical Vapor Deposition Vacuum Coating MachineFor Anti - Friction Diamond - Like Coatings

China Physical Vapor Deposition Vacuum Coating MachineFor Anti - Friction Diamond - Like Coatings supplier
Physical Vapor Deposition Vacuum Coating MachineFor Anti - Friction Diamond - Like Coatings supplier Physical Vapor Deposition Vacuum Coating MachineFor Anti - Friction Diamond - Like Coatings supplier

Large Image :  Physical Vapor Deposition Vacuum Coating MachineFor Anti - Friction Diamond - Like Coatings

Product Details:

Place of Origin: China
Brand Name: ATOP
Certification: ISO9001
Model Number: ATDLC

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: By negotiation
Packaging Details: In film
Delivery Time: 60working days
Payment Terms: L/C, T/T
Supply Ability: 200 sets/year
Contact Now
Detailed Product Description
Condition: New Limited Vacuum Degree: 8*10-4Pa
Warranty: 12 Months Business Type: Manufacturer
After Sale Service: Engineers Avaliable To Service Machinery Oversea Substrate: Vacuum Coating Machine





ATOP PVD Vacuum Coating System/Physical Vapor Deposition Equipment/Plasma



Deposition System







Application Field





1.Super-hard wear-resistant film, self-lubricating and anti-friction diamond-like coatings.

.



2.Automotive, non-ferrous material machining and industrial engineering environments.





3.This equipment is a multi functional coating equipment, which can be installed at the same time two to



six different target material, pure metal or alloy plating nano meter film of single layer or multi layer, high-



performance and super hard film layer, excellent wear resistance and corrosion resistance and



beautification effect, mainly used in drill bits, milling cutter, core shaft, blades, precision mould, cutting



tools, etc.




Main Feature


1.Plasma source assisted deposition technology,pre-cleaning and the auxiliary deposition to the work


piece.




2. Adopt the high power pulse bias power supply enhance the coating adhesion.




3. Adopt multiple sets of twin arc,which can install 2-6 different target materials.Pure metal or alloy


composite nano film layer is achieved.




4.The work piece rack adopts rotation and revolution structure,large loading capacity and temperature


resistance.The frame can move out of the chamber which is convenient to load heavy molds.The work


piece rack can be customized according to customer requirements and adopts inverter to adjust,and


infinitely adjustable speed.






principle and application



This equipment is a multi functional coating equipment, which can be installed at the same time two to six

different target material, pure metal or alloy plating nano meter film of single layer or multi layer, high-

performance and super hard film layer, excellent wear resistance and corrosion resistance and

beautification effect, mainly used in drill bits, milling cutter, core shaft, blades, precision mould, cutting

tools, etc.




Configuration

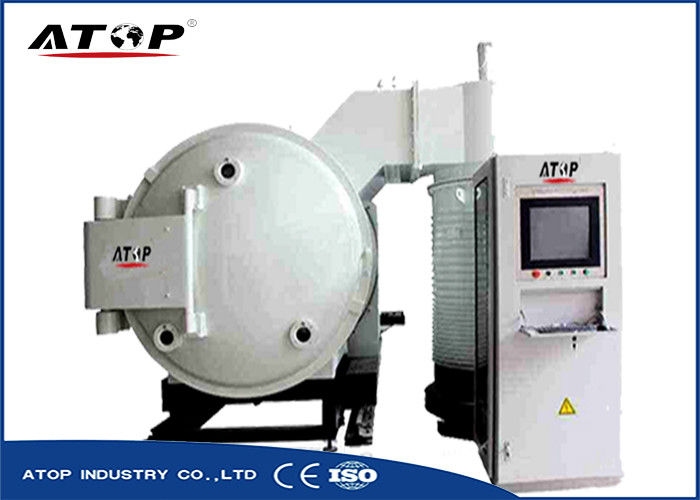

The machine is consist of vacuum chamber, vacuum pumping system, bias power supply, coating system,

gas system, control system,alarm system and heating system .



Product Name



ATOP PVD Vacuum Coating System/Physical Vapor Deposition Equipment/Plasma

Deposition System



Vacuum Chamber Size

Decide according to the substrate size and output

Substrate



Drill bits, milling cutter, core shaft, blades, precision mould, cutting tools, etc.

Coating Film

Pure metal or alloy composite nano film

Coating Colors

Gold, silver, black etc.

Structure

Vertical type ; horizontal type ; single door type ; double-door type.
Features


Adopt multiple sets of twin arc, which can install 2-6 different target materials.

Pure metal or alloy composite nano film layer is achieved.


Configuration

Plasma source assisted deposition technology,pre-cleaning and the auxiliary

deposition to the work piece. Adopt the high power pulse bias power supply

enhance the coating adhesion.

Weight

3Tons-5Tons accordingly

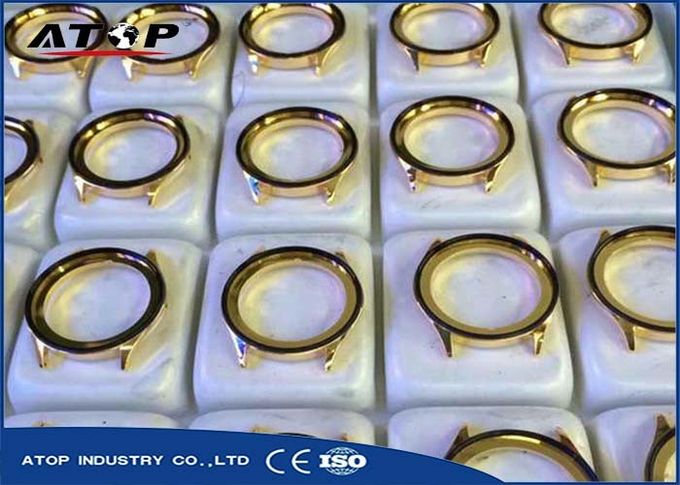

Coating Samples


Physical Vapor Deposition Vacuum Coating MachineFor Anti - Friction Diamond - Like Coatings
