Plastic Chrome Plating Vacuum Metallizing Machine For Wear Resistant Film

China Plastic Chrome Plating Vacuum Metallizing Machine For Wear Resistant Film supplier
Plastic Chrome Plating Vacuum Metallizing Machine For Wear Resistant Film supplier Plastic Chrome Plating Vacuum Metallizing Machine For Wear Resistant Film supplier

Large Image :  Plastic Chrome Plating Vacuum Metallizing Machine For Wear Resistant Film

Product Details:

Place of Origin: China
Brand Name: ATOP
Certification: ISO9001
Model Number: ATZF

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: By negotiation
Packaging Details: In film
Delivery Time: 60working days
Payment Terms: L/C, T/T
Supply Ability: 200 sets/year
Contact Now
Detailed Product Description
Limited Vacuum Degree: 8*10-4Pa Certification: ISO,CE
Business Type: Manufacturer Coating Color: Gold, Rose Gold, Silver Etc.
After Sale Service: Engineers Avaliable To Service Machinery Oversea Substrate: Plastic, Ceramic,glas,resin,candle And Metal Material,etc

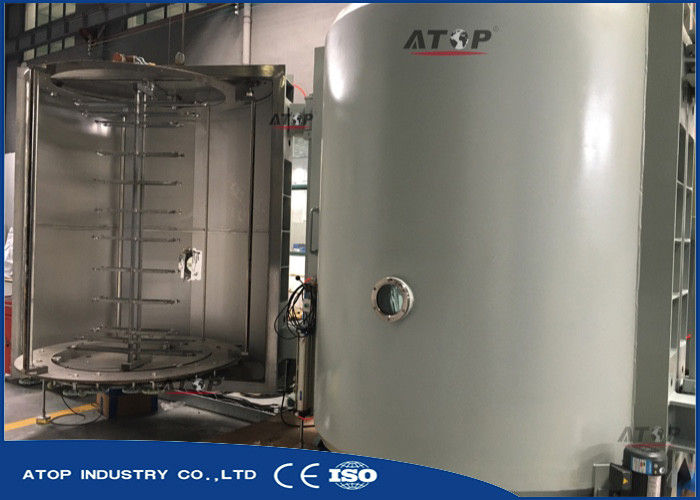

ATOP Vacuum Evaporation Coating Machine for Plastic Metalization




Working Principle




Resistance evaporation vacuum coating machine working principle is that when the evaporation materials



such as aluminum wire in high resistance materials, heat generated by electric current, the membrane



material under high temperature, instant vaporization migrated to base material surface, evaporation



deposition film.






Product Name


ATOP Vacuum Evaporation Coating Machine for Plastic Metalization


Vacuum Chamber Size


Decide according to the substrate size and output

Substrate


Crafts,Gifts,Hardware appliances,etc.Main for plastic, with UV base coating

and top coating



Coating Film


High-grade decorative coating.

Coating Color


Gold, rose gold,coffee,brown,bronze,blue,black,white,gray etc.




Applications


Hardware,glass crafts,ceramic crafts such us watches,mobile phone metal

shell,sanitary ware,mould,electronic products,crystal glass, glasses, cutlery,

knives and so on.


Structure


Vertical type ; horizontal type ; single door type ; double-door type.


Features


Equipped with 1-2 sets new model evaporation electrode, easy installation and

discharge, convenient maintenance. Work rack flexible and reliable by public

rotation of gear transmission structure.


Configuration


High pumping speed, high efficiency, energy saving, full automatic process

controller can be simple, reliable, beautiful.






Basic Configuration





1.The selection of a variety of structures, such as: vertical, horizontal, single, two-door, SUS304 or carbon



steel manufacturing, vacuum chamber effective diameter from Φ 600 mm to Φ 2200 mm.





2.The vacuum system consists of mechanical pump, rotary vane pump, roots pump and a cold well high



vacuum oil diffusion pump, or energy saving, pollution-free, noiseless, high efficiency molecular pump



composition.





3.The coating system adopts 1--2 sets of new structure copper electrode resistance evaporation system



and power supply.





4.A low temperature water vapor trap can be used for the auxiliary pumping system.





5. The electric control system shall set up circuit overload, water breaking, and acoustic alarm device.





6. Control system (touch screen + PLC), display detailed parameters in real time, fully automatic control of



the entire production process, and automatic storage of process parameters.





Application Field



1.This Evaporation Vacuum Coating could match with UV base coating and UV top coating for kinds of

high standard beatiful decorative coating and function caoting on plastic, ceramic,glass,resin,candle and

metal material.


2.High efficiency,full automatic,integrating the vacuum technology,evaporation caoting and

electromechanical integration technology together,Its an ideal equipment to do the high-grade decorative

coating.


3.It can be widely used in crafts,gifts,hardware appliances,accessories and electronics,machinery,light

industry and other industries.

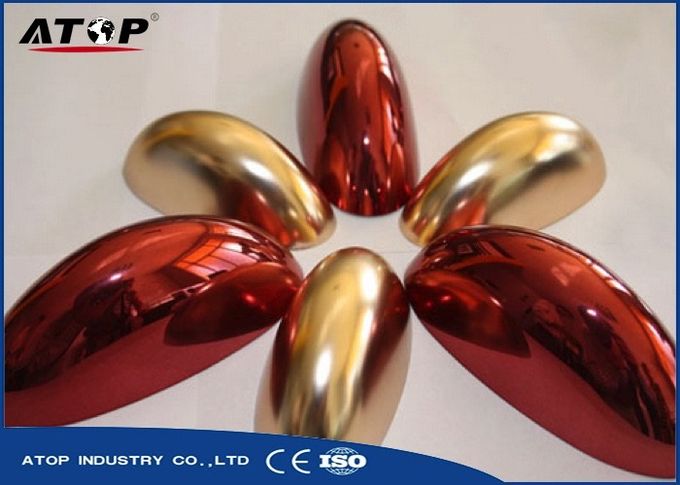

Coating Sample



Plastic Chrome Plating Vacuum Metallizing Machine For Wear Resistant Film
